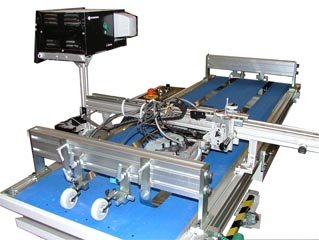

Mobile Vacuum Table

Features

  • Belt 550mm wide X 2000mm long (1 meter, 3 metre options)
  • 5 Vacuum chambers along the length, options to split the length into separate sections.
  • Option to switch the vacuum chambers on and off individually
  • Variable speed max speed approx 70m / min
  • Adjustable height max 1100mm / min 560mm
  • Min Product is 100mm long in direction of travel X 200mm wide
  • Complete with vacuum blower.
  • Aluminium extrusion on the both sides with T slots to bolt accessories along the length of the conveyor such as: Printing Heads, Gluing Stations, and Labelling Heads etc.
  • Two off aluminium extrusion bridges across conveyor approx 100mm high with T slots to bolt accessories on at the input and output of the conveyor (drive wheels, encoder etc.)
  • Locking swivel casters

    • Applications Include

  • Direct Mail Printing
  • Vision Inspection
  • Security Tag Assembly
  • Packaging
  • Labeling
  • Finishing
  • Gluing
